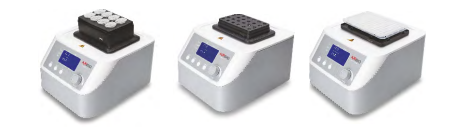

THERMO MIX
- Fully programmable
- Precise temperature control for heating
- Real-time display of speed, temperature and time
- Compatible with most popular tubes
- Block equipped with a lid for heat preservation
- Temperature self-calibration
- Interchangeable sample blocks available
- Quick interchange of blocks without tools and automatic block recognition AX-DB-100 and AX-TMDB-100
| Cat No. | Description |
|---|---|
| AXA18900401 | Standard Block, 0.5 mL × 24, 1500 rpm |
| AXA18900402 | Standard Block, 1.5 mL × 24, Conical Bottom, 1500 rpm |
| AXA18900403 | Standard Block, 2 mL × 24, Round Bottom, 1500 rpm |
| AXA18900404 | Standard Block, 5 mL × 8, Round Bottom, 1500 rpm |
| AXA18900405 | Standard Block, 5 mL × 8, Conical Bottom, 1500 rpm |
| AXA18900406 | Standard Block, 15 mL × 8, 800 rpm |
| AXA18900407 | Standard Block, 50 mL × 4, 600 rpm |
| AXA18900420 | Standard Block, 96 or 384 Well Plate, 1500 rpm |
| AXA18900423 | Standard Block, Microplate, 1500 rpm |
| Specification | AX-DB-100 | AX-TMDB-100 | AX-TDB-110 | AX-TCMDB-100 |
|---|---|---|---|---|
| Temperature Range | Room Temp +5 to 100 °C | Room Temp to 100 °C | Below Room Temp to 110 °C | Room Temp to 100 °C |
| Temperature Setting Range | 15–100 °C | 15–100 °C | -5–110 °C | 15–100 °C |
| Temperature Control Accuracy (20–45 °C) | ±0.5 °C | ±0.5 °C | ±0.5 °C | ±0.5 °C |
| Temperature Uniformity (20–45 °C) | ±0.5 °C | ±0.5 °C | ±0.5 °C | ±0.5 °C |
| Time Setting Range | 0 min – 99 h 30 min | 0 min – 99 h 30 min | 0 min – 99 h 30 min | 0 min – 99 h 30 min |
| Max Heating Speed | 5.5 °C / min | 5.5 °C / min | 5.5 °C / min | 5.5 °C / min |
| Max Cooling Speed | — | — | 2.5 °C / min (100 °C to RT) 0.5 °C / min (below RT) | 2.5 °C / min (100 °C to RT) 0.5 °C / min (below RT) |
| Functions | Heating | Heating / Mixing | Heating / Cooling | Heating / Mixing |
| Mixing Speed | — | 200–1500 rpm | — | 200–1500 rpm |
| Mixing Orbit | — | 3 mm | — | 3 mm |
| Program Memory | 9 | 9 | — | 9 |
| Overheating Protection | 150 °C | 150 °C | 150 °C | 150 °C |
| Power | 200 W | 200 W | 180 W | 200 W |
| Display | TFT | TFT | TFT | TFT |
| Voltage / Frequency | 220 V, 50 / 60 Hz | 220 V, 50 / 60 Hz | 220 V, 50 / 60 Hz | 220 V, 50 / 60 Hz |
| Dimensions (W × D × H) | 200 × 235 × 120 mm | 200 × 235 × 120 mm | 200 × 235 × 120 mm | 200 × 235 × 120 mm |
| Weight | 7.3 kg | 7.3 kg | 7.3 kg | 7.3 kg |
| Permissible Ambient Temperature | 10–40 °C | 10–40 °C | 10–40 °C | 10–40 °C |
| Permissible Ambient Humidity | < 80% RH | < 80% RH | < 80% RH | < 80% RH |
| Cat No. | Description |
|---|---|
| AX-DB-100 | Dry Bath, Room Temp +5 to 100 °C, Digital Control, Changeable Block |
| AX-TMDB-100 | Thermo Mix, Heating & Mixing, RT to 100 °C, Digital Control, 200–1500 RPM |
| AX-TDB-110 | Thermo Mix, Heating & Cooling, −5 to 110 °C, Digital Control |
| AX-TCMDB-100 | Thermo Mix, Heating, Cooling & Mixing, RT to 100 °C, Digital Control, 200–1500 RPM |
