VORTEX MIXER
- Variable speed of 0 to 3,000rpm for gentle shaking to rapid mixing of samples
- Touch or continuous operation mode
- Includes a standard top head for mixing a single test tube or other small vessels up to 30mm in
diameter - Electronic speed control maintains constant speed even during changes in load
- Steel base with specially designed vacuum suction feet provides stability and dampens vibration
- Robust aluminum-cast construction
Application
Biology & Research Laboratories
Suitable for routine laboratory analysis and testing.
Food Industry
Used for quality control and contamination monitoring.
Microbiological Detection
Supports reliable detection and analysis of microorganisms.
Vacuum-Based Processes
Ideal for vacuum extraction, liquid filtration, and vacuum drying.
Analytical Measurements
Used for accurate suspended solids determination.
| Specification | AMI0101002D |
|---|---|
| Motion type | Touch operation/Continuous |
| Orbital diameter | 4 mm |
| Speed range | 0-3000 rpm (Adjustable) |
| Speed display | Scale |
| Run type | Touch operation/Continuous |
| Motor type | Shaded pole motor |
| Motor rating input | 58 W |
| Motor rating output | 10 W |
| Power | 60 W |
| Voltage | 100-120V / 200-240V |
| Frequency | 50/60 Hz |
| Dimension [W×H×D] | 127 × 130 × 160 mm |
| Weight | 2.0 kg |
| Permissible ambient temperature | 5-40°C |
| Permissible relative humidity | 80% RH |
| Protection class | IP21 |
| Cat No. | Description |
|---|---|
| AMI0101002D | Vortex Mixer, digital, orbital, 0-3000 rpm |
| Cat No. | Description |
|---|---|
| AMI0101002-14 | Universal top Plate for Vortex |

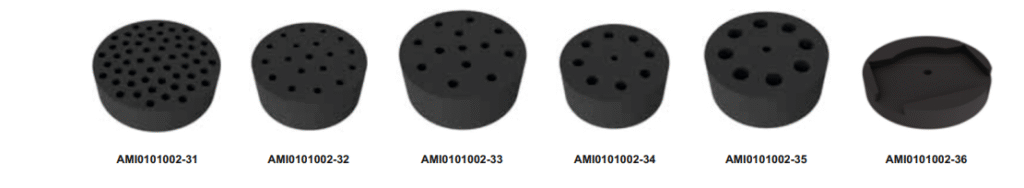

| AMI0101002-31 | Test Tube Attachment, 48 x φ6mm |
| AMI0101002-32 | Test Tube Attachment, 15 x φ10mm |
| AMI0101002-33 | Test Tube Attachment, 12 x φ12mm |
| AMI0101002-34 | Test Tube Attachment, 8 x φ16mm |
| AMI0101002-35 | Test Tube Attachment, 8 x φ20mm |
| AMI0101002-36 | Microtiter Plate Attachment |
